Specification

MODEL SAB-527 - Autobag Counter (PE Film Pouch)
Contact Material SUS 316L
Dimension 1,100 X 1,610 X 1,950
Weight 800Kg (Approx.)
Required Power 1.0Kw (Approx.)
Eletric Spec 220V/380V, 50HZ/60HZ, 3PH
Counting Speed Max. 6,000 tablets/min
Product size Tablet diameter 3~20mm
#00-#5 Capsule & Softgel
Type 12 Track
Hopper Capacity 40 Liter (Approx.)
Pouch Size W50-280mm L63-558mm
Air Consumption 300 Liters/min, 6kg/㎠
Optional Item Printing system

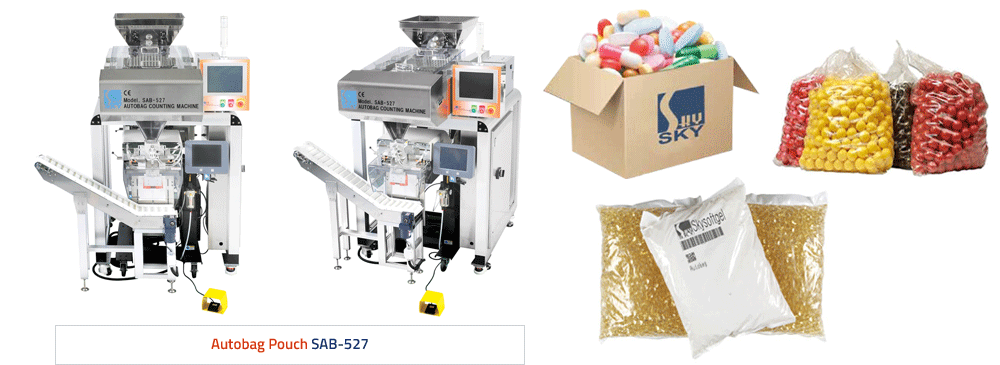

Autobag Pouch SAB-527

  • 100% Accuracy without more or less
  • New Pouch Packing System
  • Counting Packing - No more or Less
  • No Need Weighing
  • Solution of Inaccurate Old System
