카톤 포장 기계 l     제품안내

Specification

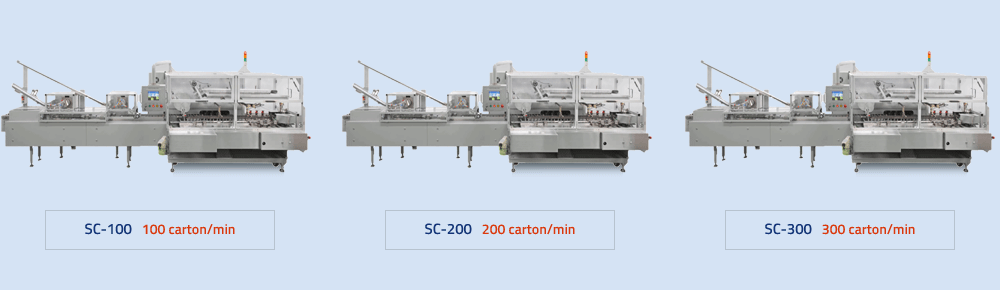

MODEL SC-100 SC-200 SC-300
Output (min) 100 200 300
Carton type Tuck-in or Hotmelt Tuck-in or Hotmelt Tuck-in or Hotmelt
Carton
pitch
(mm)		 A Type 101.6 101.6 101.6
B Type 127.0 127.0 127.0
C Type 190.5 190.5 190.5
Carton
size
(mm)		 A Type Width 15~70, Height 15~65, Length 55~180 Width 15~70, Height 15~65, Length 55~180 Width 15~70, Height 15~65, Length 55~180
B Type Width 15~95, Height 15~65, Length 70~180 Width 15~95, Height 15~65, Length 70~180 Width 15~95, Height 15~65, Length 70~180
C Type Width 15~160, Height 15~65, Length 70~180 Width 15~160, Height 15~65, Length 70~180 Width 15~160, Height 15~65, Length 70~180
Dimension
(L x W x H)		 2660 X 1645 X 1950 3660 X 1645 X 1950 4500 X 1645 X 1950
Weight 2800 Kg 3300 Kg 3800 Kg
Required Power 2 Kw + option 3.0 Kw + option 3.4 Kw + option
Option Date coder (Inkjet or Embossion)
Hot melt applicator
Leaflet loading device (Magazine, Leaflet folder)
Autoloading device (PTP, Bottle, Tube, Pillow etc)
Bunding		 Date coder (Inkjet or Embossion)
Hot melt applicator
Leaflet loading device (Magazine, Leaflet folder)
Autoloading device (PTP, Bottle, Tube, Pillow etc)
Bunding		 Date coder (Inkjet or Embossion)
Hot melt applicator
Leaflet loading device (Magazine, Leaflet folder)
Autoloading device (PTP, Bottle, Tube, Pillow etc)
Bunding



Advantages

  • Built in balcony construction :
    a conception allows the comlete separation of mechanical working from the packaging area
  • Stable cartoning in high speed by specially designed forming
  • Less-noisy & easy maintenance
  • Quick size change-over by digital indication modulator
  • Perfect safty device for poerators
  • 2 pusher type, Turret pusher type
